Name: Forged Threaded Equal Tee
Brand: Cunimet Alloy International

Product Overview

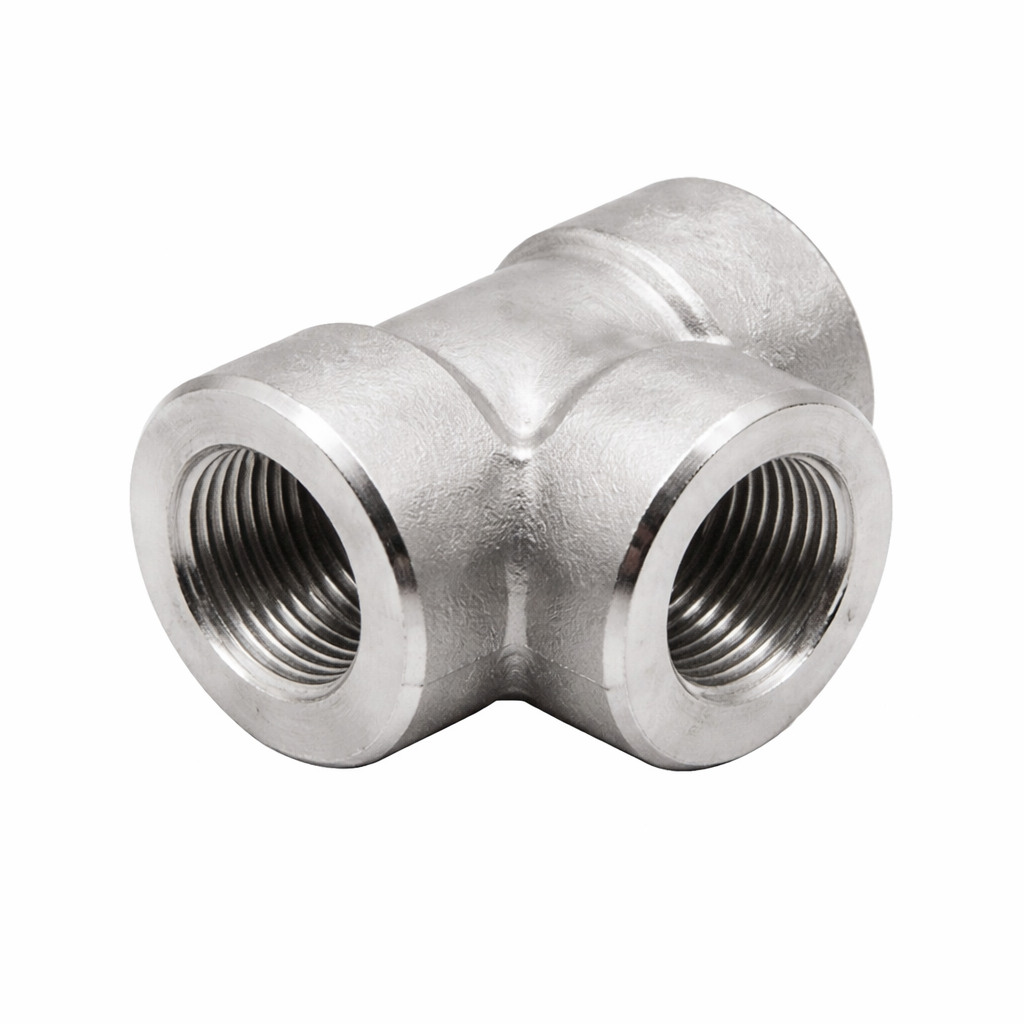

Forged Threaded Equal Tee

The Forged Threaded Equal Tee is a three-outlet fitting used to split a single threaded pipe run into two branches, or to combine two branch flows into one main run, using screwed NPT or BSP connections throughout. All three outlets carry female pipe threads of equal size. The branch outlet is positioned at 90 degrees to the run axis, forming a T-shaped geometry that allows flow to be distributed or combined at a single point without welding.

Threaded tees are used extensively in instrument manifolds, sample systems, utility distribution headers and maintenance-accessible process lines where the fitting may need to be removed or replaced during the plant's service life. Cunimet Alloy International manufactures threaded equal tees through closed-die forging, ensuring a structurally sound body at the critical crotch where the branch outlet intersects the run bore. All three outlets are threaded on CNC equipment to ASME B1.20.1 (NPT) tolerances and gauge-inspected before dispatch.

ASME B16.11 ASME B1.20.1 (NPT) 1/8" to 4" NPS 2000# • 3000# • 6000# Three Equal Female NPT Outlets

Request a Quote

ASME Standard B16.11

3 NPT Outlets Equal Bore, Female Thread

1/8–4" Size Range NPS

2000# Min. Class Also 3000# & 6000#

3 Material Grades SS / Duplex / S.Duplex

Technical Dimensions

Threaded Equal Tee — ASME B16.11 Dimensions

For an equal tee, the Centre-to-Face run dimension “M” and the Centre-to-Face branch dimension “C” are identical. All three outlets carry equal female NPT threads per ASME B1.20.1. All dimensions in millimetres.

NPS	Pipe O.D. (mm)	Centre-to-Face Run “M” (mm)			Centre-to-Face Branch “C” (mm)			Thread Form	TPI
NPS	Pipe O.D. (mm)	2000#	3000#	6000#	2000#	3000#	6000#	Thread Form	TPI
1/8"	10.3	21	22	22	21	22	22	NPT	27
1/4"	13.7	24	25	27	24	25	27	NPT	18
3/8"	17.1	27	29	32	27	29	32	NPT	18
1/2"	21.3	33	35	41	33	35	41	NPT	14
3/4"	26.7	38	41	51	38	41	51	NPT	14
1"	33.4	48	52	64	48	52	64	NPT	11.5
1-1/4"	42.2	57	61	76	57	61	76	NPT	11.5
1-1/2"	48.3	64	67	83	64	67	83	NPT	11.5
2"	60.3	76	79	95	76	79	95	NPT	11.5
2-1/2"	73.0	89	95	114	89	95	114	NPT	8
3"	88.9	111	114	140	111	114	140	NPT	8
4"	114.3	140	146	178	140	146	178	NPT	8

Dimensions are nominal per ASME B16.11 latest edition. BSP threads to BS EN 10226 available on request. Reducing tees also available — contact us for dimensions. All dimensions in millimetres.

Available Materials

Material Grades for Threaded Equal Tees

Grade 01

Stainless Steel 304 / 316

Austenitic stainless steel threaded tees for chemical, food processing, pharmaceutical and water treatment distribution networks. SS 316 is preferred for chloride environments and wherever superior corrosion resistance is required over SS 304.

ASTM A182 F304 ASTM A182 F316 ASME B16.11

Grade 02

Duplex Steel

High-strength duplex alloy threaded tees for offshore process headers, desalination distribution piping and chemical plant service where stress corrosion cracking resistance and high yield strength are required at branch junction points.

ASTM A182 F51 UNS S31803 UNS S32205

Grade 03

Super Duplex Steel

Premium super duplex threaded tees with PREN greater than 40 for seawater service, subsea systems and aggressive chloride-rich environments where maximum pitting and stress corrosion cracking resistance is required at threaded branch points.

ASTM A182 F53 UNS S32750 UNS S32760

Quality & Compliance

Standards, Testing & Documentation

Applicable Standards

Standard	Description
ASME B16.11	Forged Fittings, Socket-Welding & Threaded — dimensional standard
ASTM A182	Material specification for forged alloy and stainless steel fittings
ASME B1.20.1	NPT Pipe Threads — thread form, dimensions and tolerances
BS EN 10226	BSP pipe threads — available on request
MSS SP-25	Standard marking for fittings and flanges
EN 10204	3.1 MTC standard; 3.2 with TPI on request

Quality Tests Performed

Test	Method / Scope
Chemical Analysis	OES per ASTM A182 for each heat of material
Mechanical Testing	Tensile, yield, elongation and Charpy impact where specified
Hardness Testing	Brinell or Vickers per ASTM A182 requirements
Thread Gauging	100% NPT go/no-go gauge on all three outlets per ASME B1.20.1
PMI	100% XRF Positive Material Identification on request
Dimensional Inspection	100% per ASME B16.11 run and branch centre-to-face dimensions
