Forged Fittings Manufacturer & Exporter

Precision-forged pipe fittings in Stainless Steel, Duplex Steel and Super Duplex Steel — manufactured to ASME B16.11, MSS SP-79 and MSS SP-83.

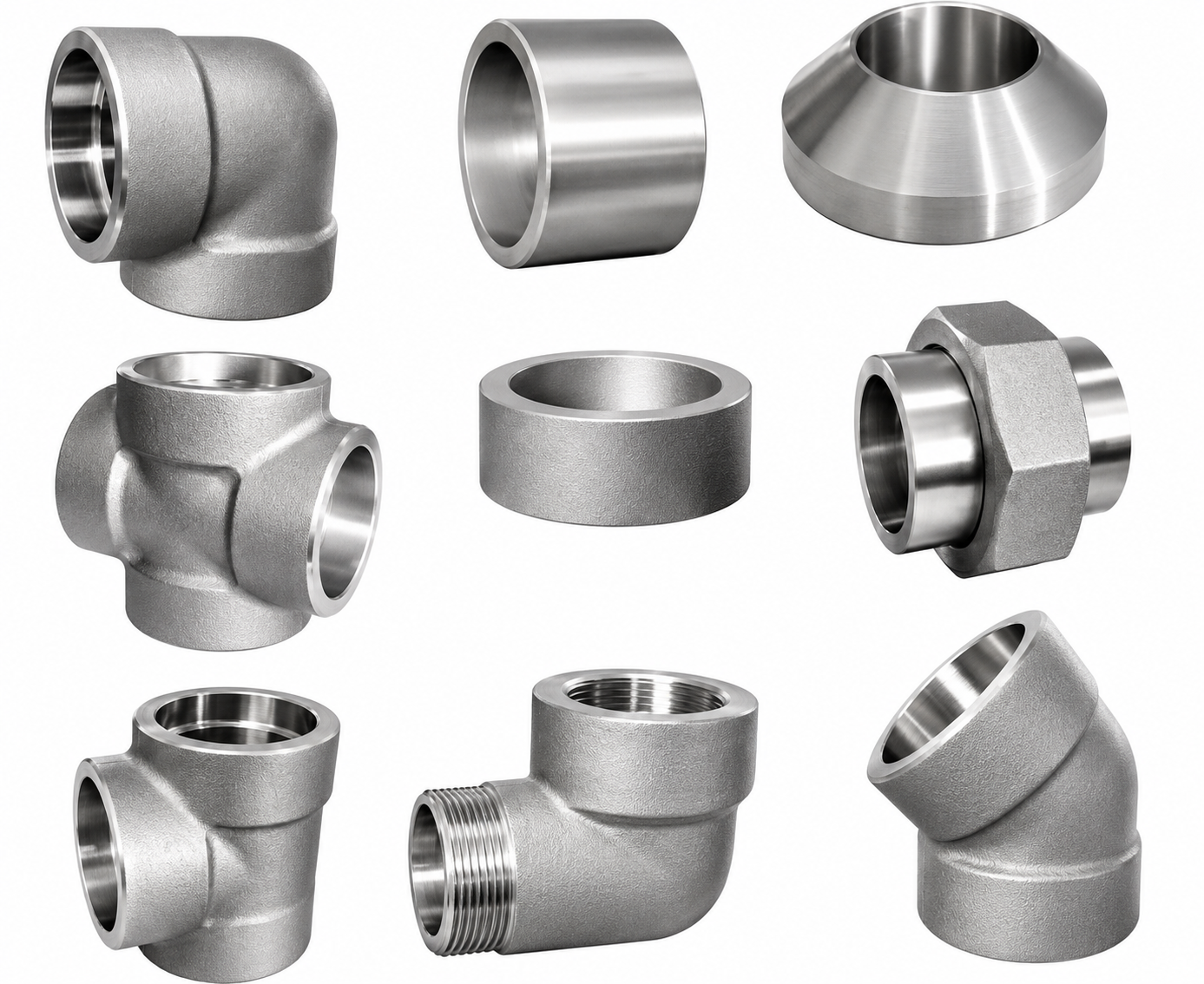

Forged fittings manufacturer India – Cunimet Alloy International
Product Overview

High-Integrity Forged Fittings

Cunimet Alloy International manufactures a comprehensive range of forged pipe fittings designed for high-pressure, high-temperature and corrosive process environments. Our fittings are produced through a fully integrated closed-die forging process that ensures a homogeneous grain structure, superior mechanical properties and dimensional accuracy.

Available in pressure classes 2000#, 3000#, 6000# and 9000#, our forged fittings are used in oil & gas, petrochemical, chemical processing, power generation, marine and offshore applications across the globe.

ASME B16.11 MSS SP-79 MSS SP-83 ASTM A182 2000# / 3000# / 6000# / 9000#
Request a Quote
Product Categories

Three Types of Forged Fittings

Select a category below to view detailed product listings, specifications and available grades.

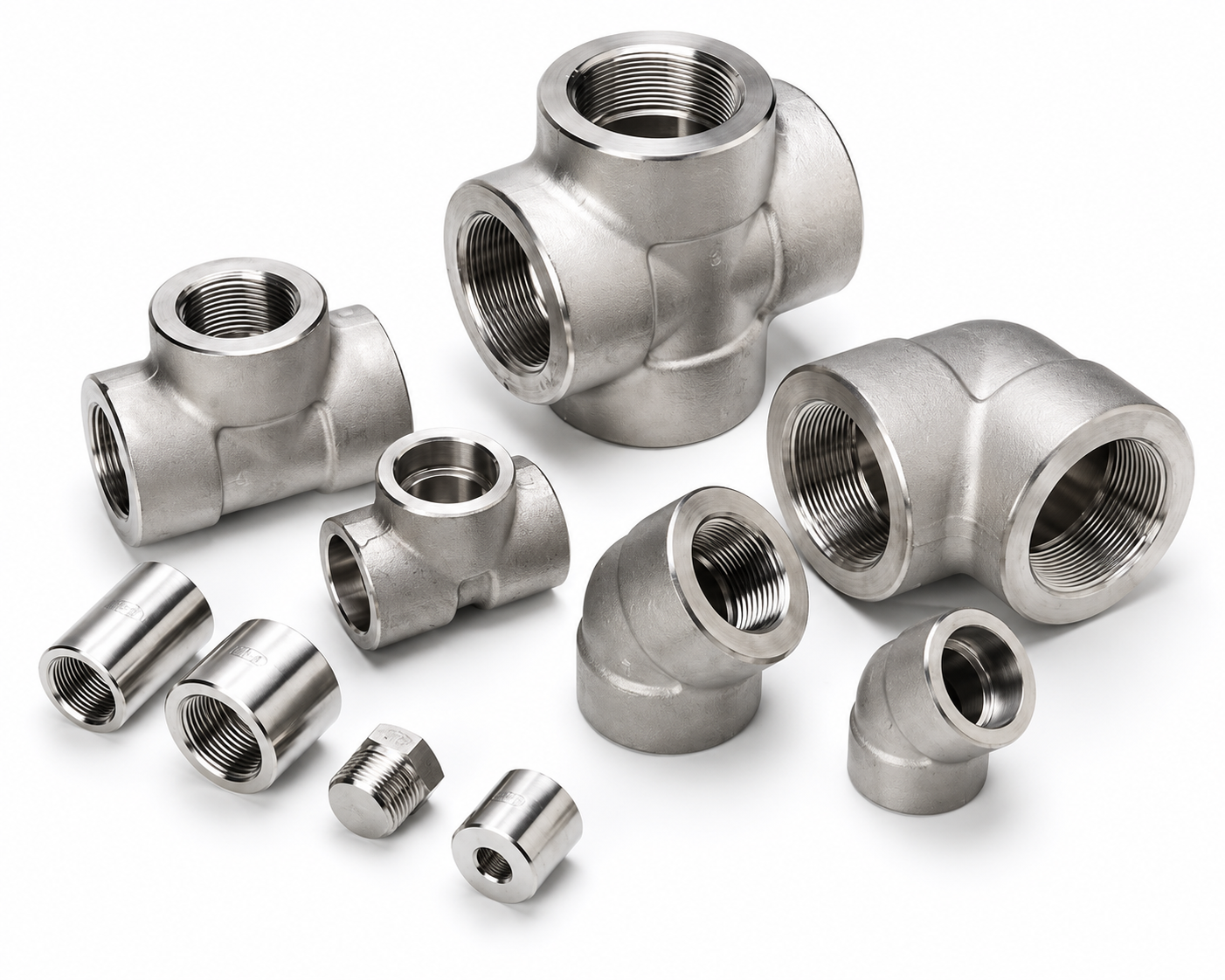

Forged Threaded Fittings manufacturer India

Forged Threaded Fittings

Elbows, tees, unions, couplings, half couplings, plugs and caps with NPT and BSP threads. Sizes 1/8" to 4", Class 2000# to 9000#.

View Details

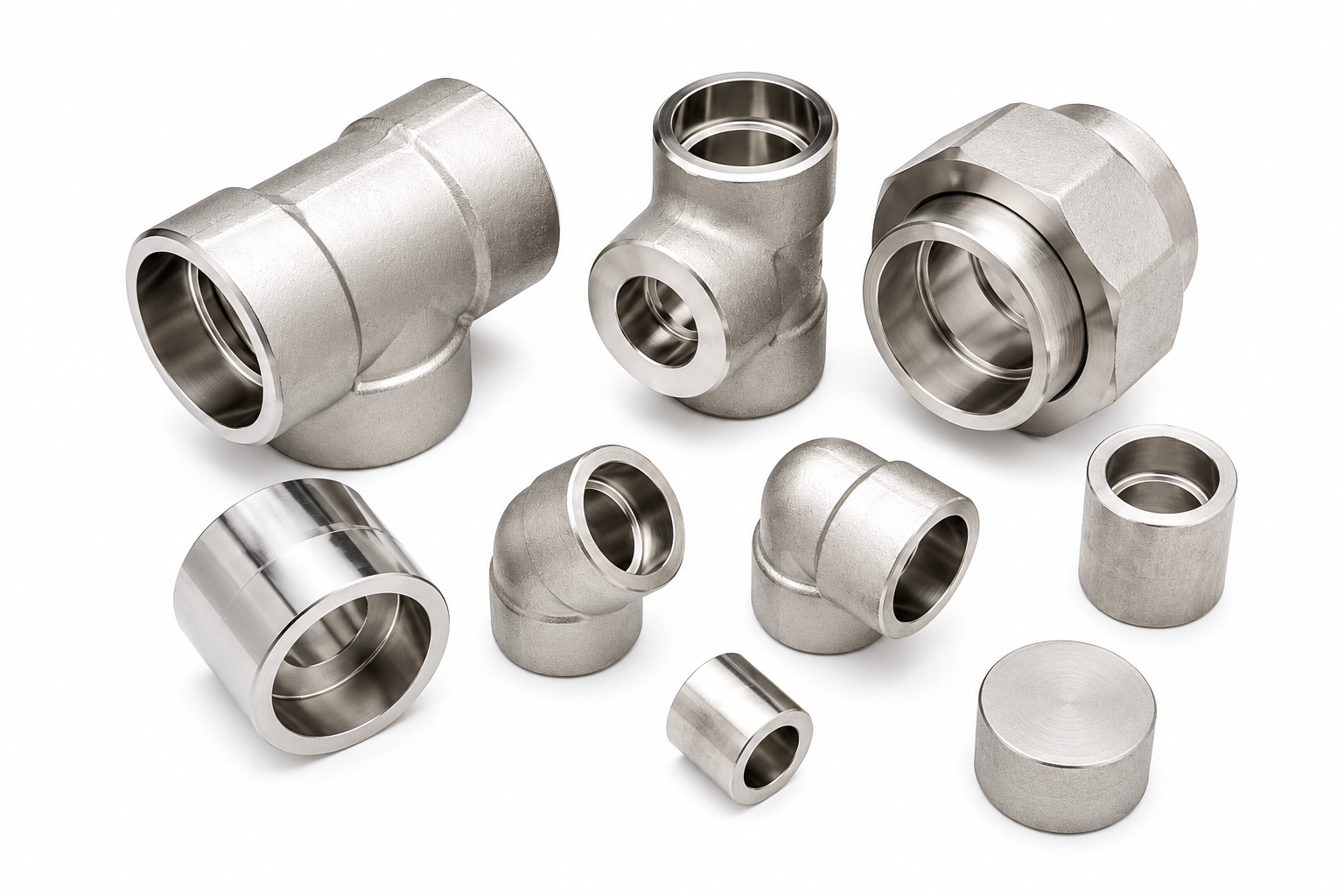

Forged Socket Weld Fittings manufacturer India

Forged Socket Weld Fittings

Elbows, tees, couplings, half couplings, caps and reducer inserts machined to ASME B16.11. Sizes 1/8" to 4", Class 3000# to 9000#.

View Details
Forged Branch Outlet fittings manufacturer India

Forged Branch Outlets

Weldolets, Sockolets, Threadolets, Elbowlets, Latrolets and Nippolets for full and reducing branch connections per MSS SP-97.

View Details
Technical Data

Forged Fittings — Specifications

Parameter Stainless Steel Duplex Steel Super Duplex Steel
ASTM SpecificationASTM A182 F304 / F316L / F321ASTM A182 F51 / F60ASTM A182 F53 / F55
UNS GradeS30400 / S31603 / S32100S31803 / S32205S32750 / S32760
Size Range1/8" to 4" NPS1/8" to 4" NPS1/8" to 4" NPS
Pressure Classes2000# / 3000# / 6000# / 9000#2000# / 3000# / 6000# / 9000#3000# / 6000# / 9000#
Dimensional StandardASME B16.11 / MSS SP-79ASME B16.11 / MSS SP-79ASME B16.11 / MSS SP-83
End FinishNPT / BSP / Plain EndNPT / BSP / Plain EndNPT / BSP / Plain End
Heat TreatmentSolution AnnealedSolution Annealed & QuenchedSolution Annealed & Quenched
Material Grades

Available Material Grades

Grade 01

Stainless Steel

Corrosion-resistant forged fittings for chemical, water and general process service. Available in 304, 304L, 316, 316L and 321 grades.

SS 304 / 304L SS 316 / 316L SS 321 SS 316Ti
Grade 02

Duplex Steel

High-strength, stress-corrosion-cracking-resistant fittings for aggressive chloride environments and offshore applications.

UNS S31803 UNS S32205 ASTM A182 F51
Grade 03

Super Duplex Steel

Premium-grade fittings with PREN > 40 for the most demanding corrosive environments — subsea, desalination and chemical plant service.

UNS S32750 UNS S32760 ASTM A182 F53/F55

Need a Quotation for Forged Fittings?

Send us your material grade, size, pressure class and quantity for a fast, competitive quote with full technical documentation.

Request a Quote Call +91 8454855505
