Name: Forged Threaded Equal Cross
Brand: Cunimet Alloy International

Product Overview

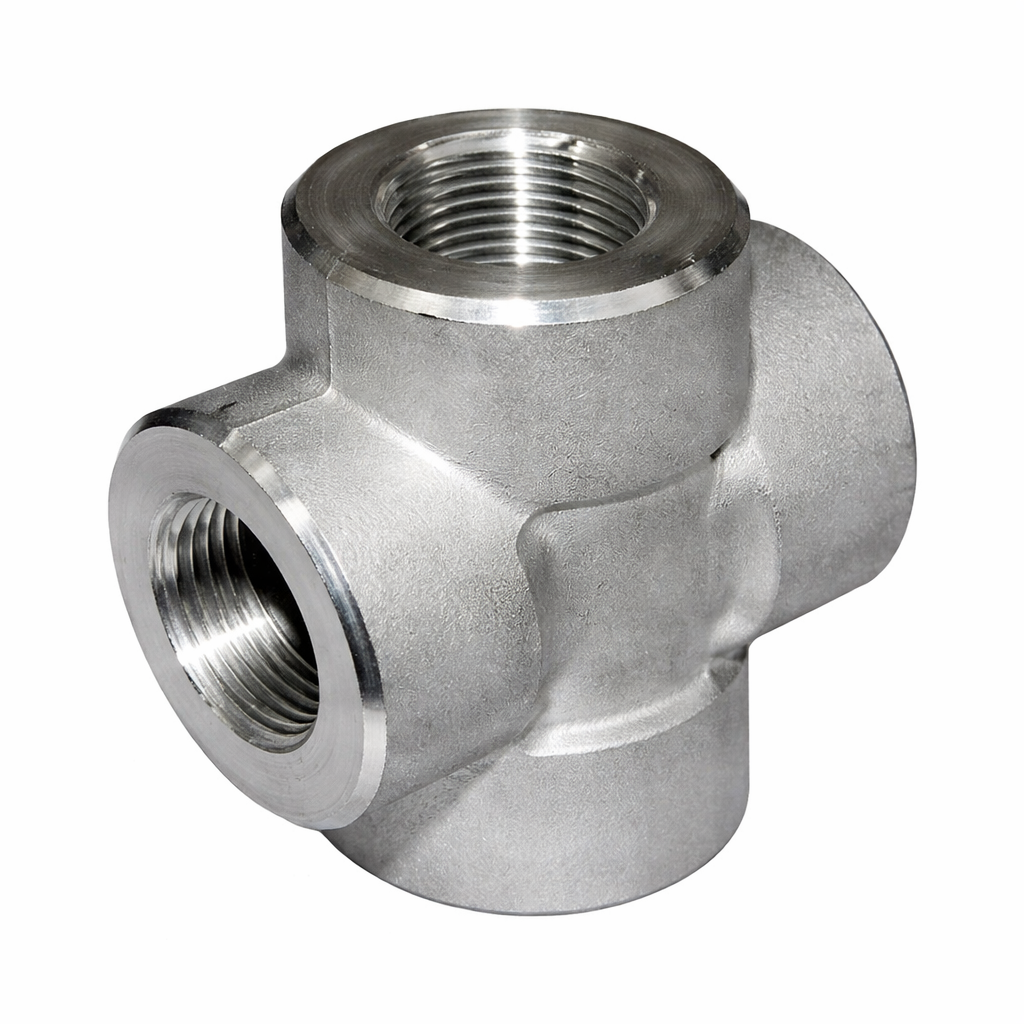

Forged Threaded Equal Cross

The Forged Threaded Equal Cross is a four-outlet fitting in which all outlets are positioned at 90-degree angles to one another in a single plane, forming a plus-sign geometry. All four outlets carry equal-size female pipe threads (NPT or BSP), allowing four separate pipe runs to meet at a single junction point using screwed connections throughout — no welding required.

The threaded cross is used wherever four piping runs must converge at one point in a system that must remain fully accessible for maintenance. By using a single forged cross fitting, four separate tee and elbow combinations are eliminated, reducing the total number of joints in the system and making the junction point more compact.

Cunimet Alloy International manufactures threaded equal crosses through closed-die forging, producing a structurally sound body at the central intersection where all four outlets meet — the most highly stressed area in the fitting. All four outlets are threaded on CNC machines to ASME B1.20.1 (NPT) tolerances and 100% go/no-go gauge inspected before dispatch.

ASME B16.11 ASME B1.20.1 (NPT) 1/8" to 4" NPS 2000# • 3000# • 6000# Four Equal Female NPT Outlets

Request a Quote

ASME Standard B16.11

4 NPT Outlets Equal, 90° Apart

1/8–4" Size Range NPS

2000# Min. Class Also 3000# & 6000#

3 Material Grades SS / Duplex / S.Duplex

Technical Dimensions

Threaded Equal Cross — ASME B16.11 Dimensions

For an equal cross, all four outlets share the same Centre-to-Face dimension “M”. All four outlets carry equal female NPT threads per ASME B1.20.1. All dimensions in millimetres.

NPS	Pipe O.D. (mm)	Centre-to-Face All Outlets “M” (mm)			No. of Outlets	Thread Form	TPI
NPS	Pipe O.D. (mm)	Class 2000#	Class 3000#	Class 6000#	No. of Outlets	Thread Form	TPI
1/8"	10.3	21	22	22	4	NPT	27
1/4"	13.7	24	25	27	4	NPT	18
3/8"	17.1	27	29	32	4	NPT	18
1/2"	21.3	33	35	41	4	NPT	14
3/4"	26.7	38	41	51	4	NPT	14
1"	33.4	48	52	64	4	NPT	11.5
1-1/4"	42.2	57	61	76	4	NPT	11.5
1-1/2"	48.3	64	67	83	4	NPT	11.5
2"	60.3	76	79	95	4	NPT	11.5
2-1/2"	73.0	89	95	114	4	NPT	8
3"	88.9	111	114	140	4	NPT	8
4"	114.3	140	146	178	4	NPT	8

Dimensions are nominal per ASME B16.11 latest edition. BSP threads to BS EN 10226 available on request. All dimensions in millimetres.

Available Materials

Material Grades for Threaded Equal Crosses

Grade 01

Stainless Steel 304 / 316

Austenitic stainless steel for chemical process, food industry, pharmaceutical and water treatment 4-way junction points. SS 316 provides superior chloride pitting resistance, making it the standard for marine, offshore and coastal service environments.

ASTM A182 F304 ASTM A182 F316 ASME B16.11

Grade 02

Duplex Steel

High-strength dual-phase alloy for 4-way junctions in offshore topsides, chemical plant and desalination distribution piping. Higher yield strength than austenitic grades reduces fitting body weight at equivalent pressure rating, particularly advantageous in large-bore cross fittings.

ASTM A182 F51 UNS S31803 UNS S32205

Grade 03

Super Duplex Steel

Premium super duplex with PREN greater than 40 for 4-way junction points in seawater service, subsea chemical injection, desalination and aggressive chloride-bearing process environments where maximum corrosion resistance is the primary material selection criterion.

ASTM A182 F53 UNS S32750 UNS S32760

Quality & Compliance

Standards, Testing & Documentation

Applicable Standards

Standard	Description
ASME B16.11	Forged Fittings, Socket-Welding & Threaded — dimensional standard
ASTM A182	Material specification for forged alloy and stainless steel fittings
ASME B1.20.1	NPT Pipe Threads — thread form, dimensions and tolerances
BS EN 10226	BSP pipe threads — available on request
MSS SP-25	Standard marking for valves, fittings and flanges
EN 10204	3.1 MTC standard; 3.2 with TPI on request

Quality Tests Performed

Test	Method / Scope
Chemical Analysis	OES per ASTM A182 for each heat of material
Mechanical Testing	Tensile, yield, elongation and Charpy impact where specified
Hardness Testing	Brinell or Vickers per ASTM A182 requirements
Thread Gauging	100% NPT go/no-go gauge on all four outlets per ASME B1.20.1
PMI	100% XRF Positive Material Identification on request
Dimensional Inspection	100% per ASME B16.11 all four centre-to-face dimensions

Applications

Where Threaded Equal Crosses Are Used

01

4-Way Instrument Manifolds

Building compact instrument manifolds where multiple pressure transmitters, gauges and switches must connect to a single process tapping point using all four screwed outlets of the cross fitting.

02

Hydraulic Distribution Blocks

Creating 4-way distribution points in hydraulic power unit piping and pneumatic control circuits where all four outlets must distribute fluid to separate actuators, valves or instruments simultaneously.

03

Chemical Injection Systems

Connecting chemical injection pump outlets to multiple injection points in offshore, subsea and onshore chemical dosing skids where four lines must be fed from a single chemical distribution junction.

04

Water & Gas Distribution

Plant water, steam, nitrogen and compressed air distribution headers where a single threaded cross reduces the number of separate tee and elbow combinations needed to create a 4-way distribution point.
